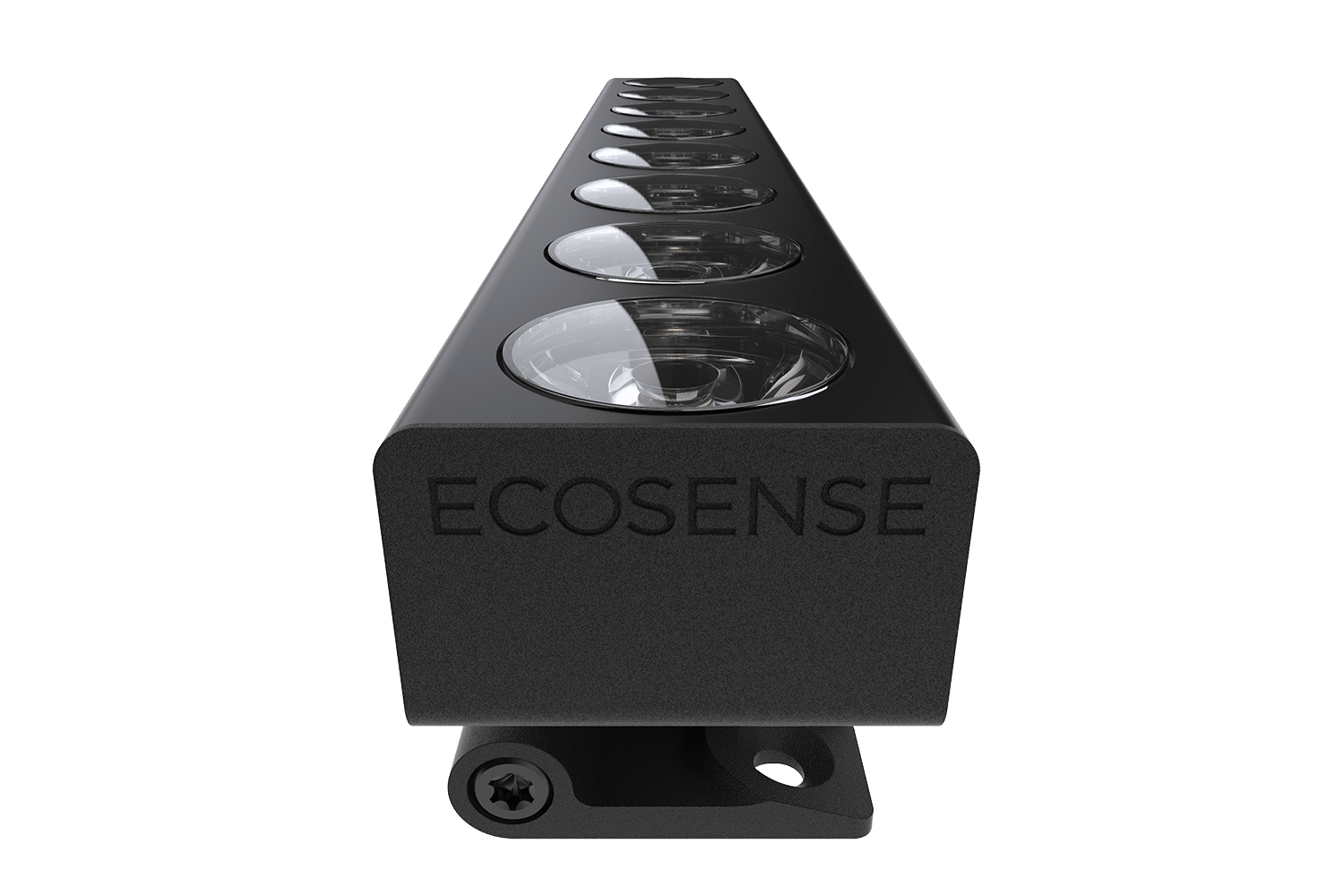

TROV L60 Linear
Most Powerful TROV Ever

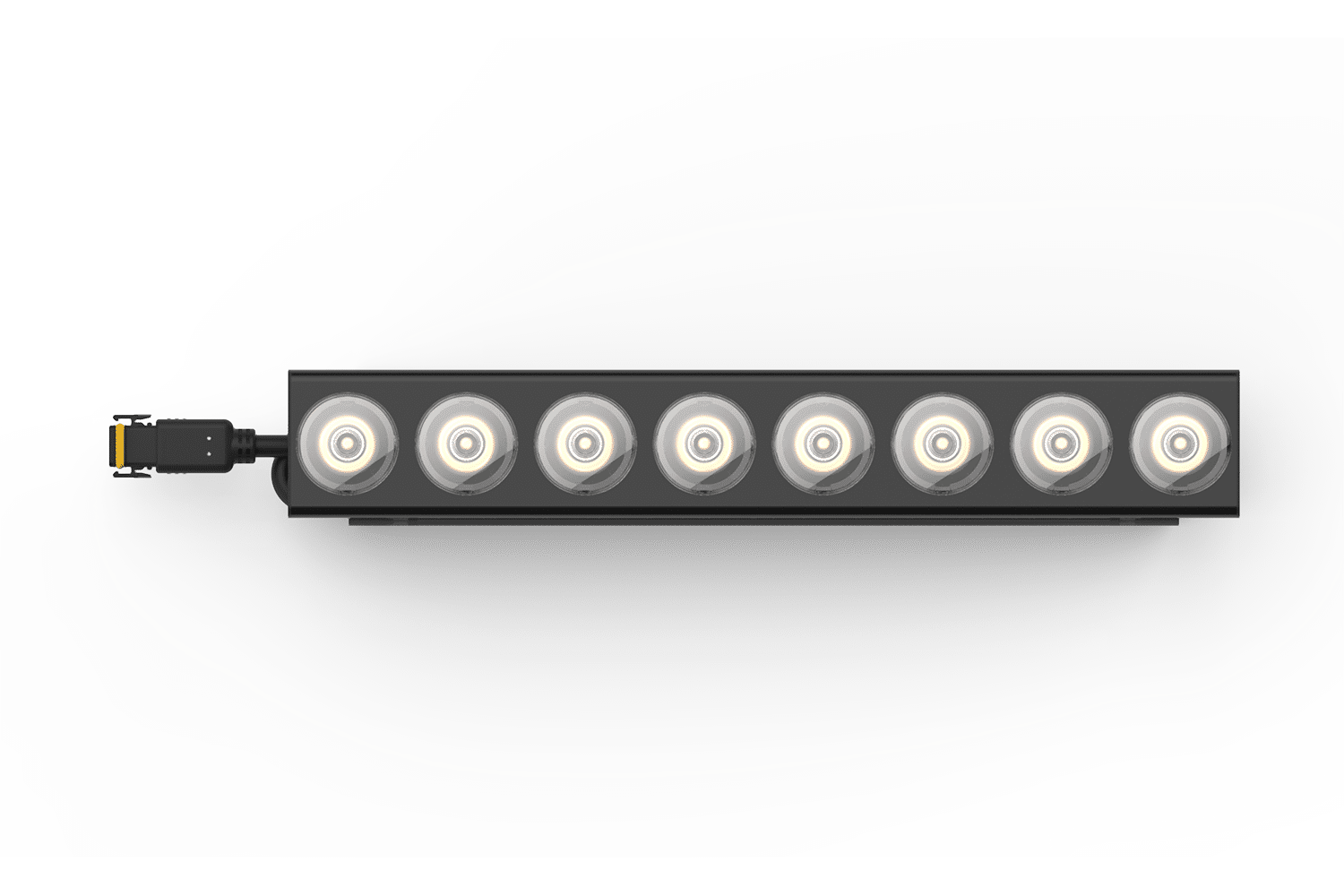

Color
Black
RAL custom finishes available
Images not available
Specify Freely
KAST will do the rest

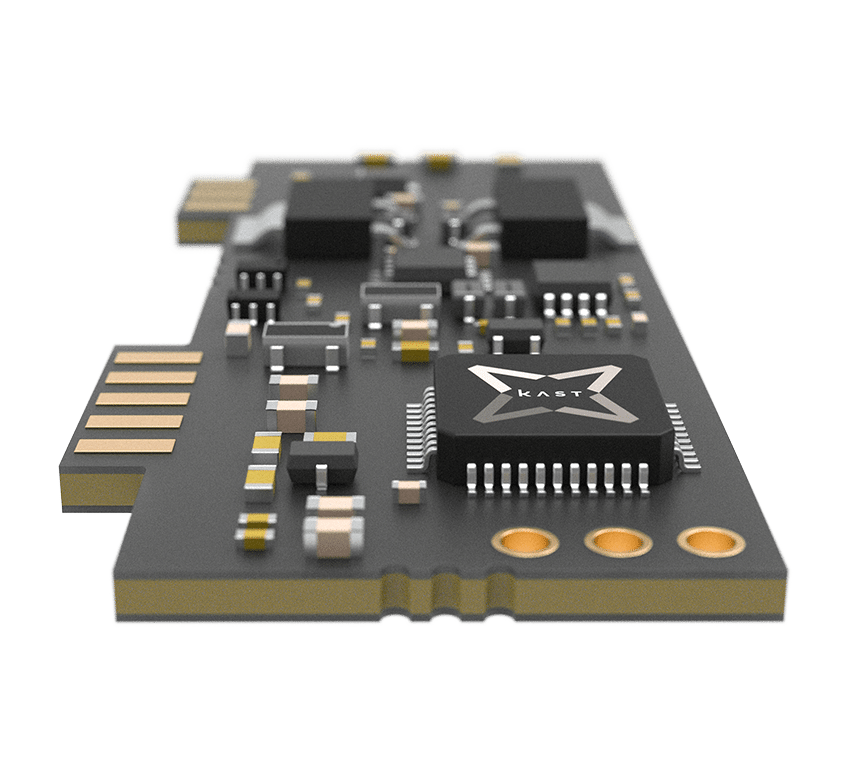

Equipped with our new Korrus Auto Sensing Technology (KAST), the new TROV self-configures to work with DALI, DMX, 0-10V and ELV. No special adapters, wiring or orders needed.
Designed To Perform
They Just Go Well Together
Accessories have been designed from the ground up to be stronger,
more versatile, and easier to install.
Blend In
Stand Out

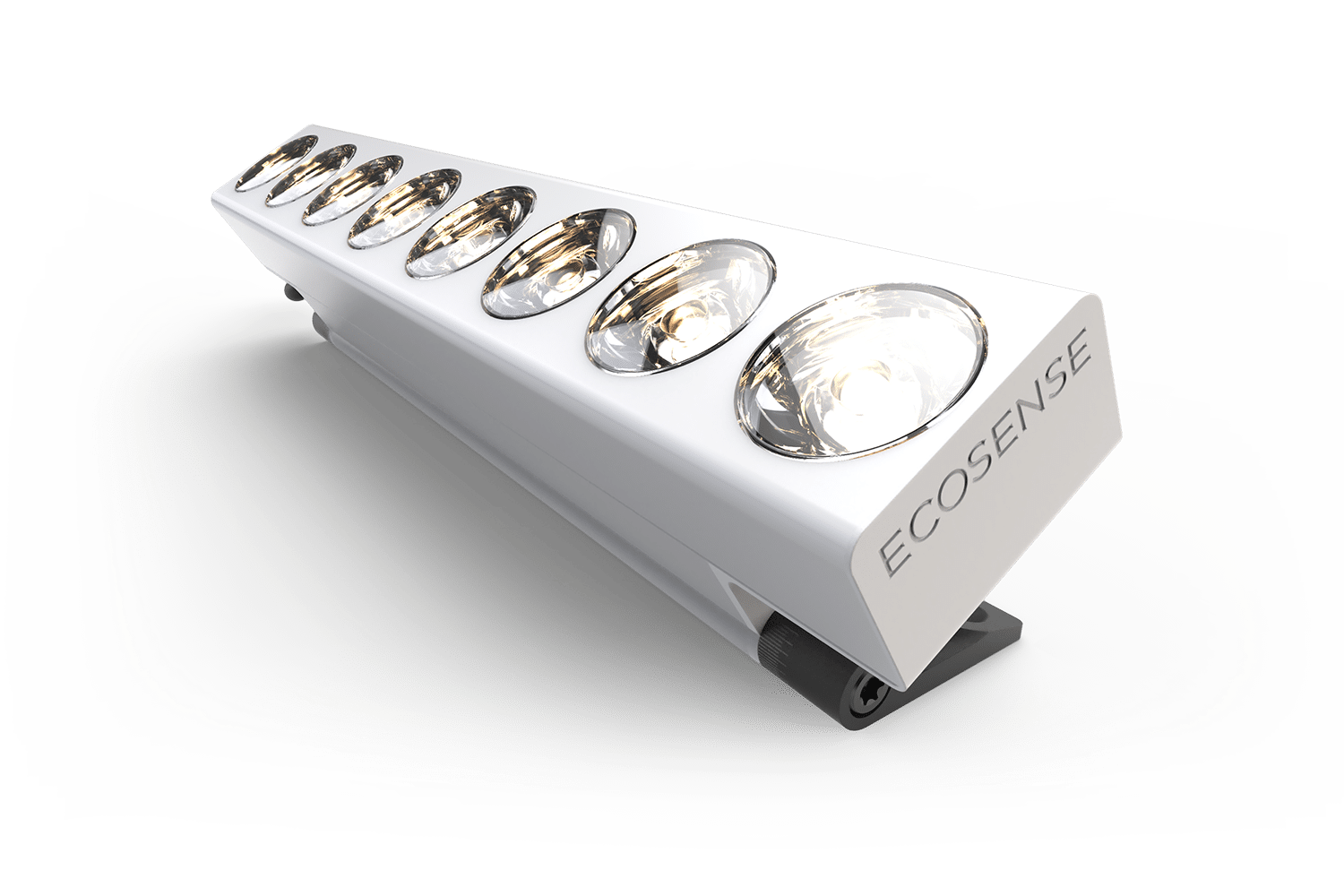

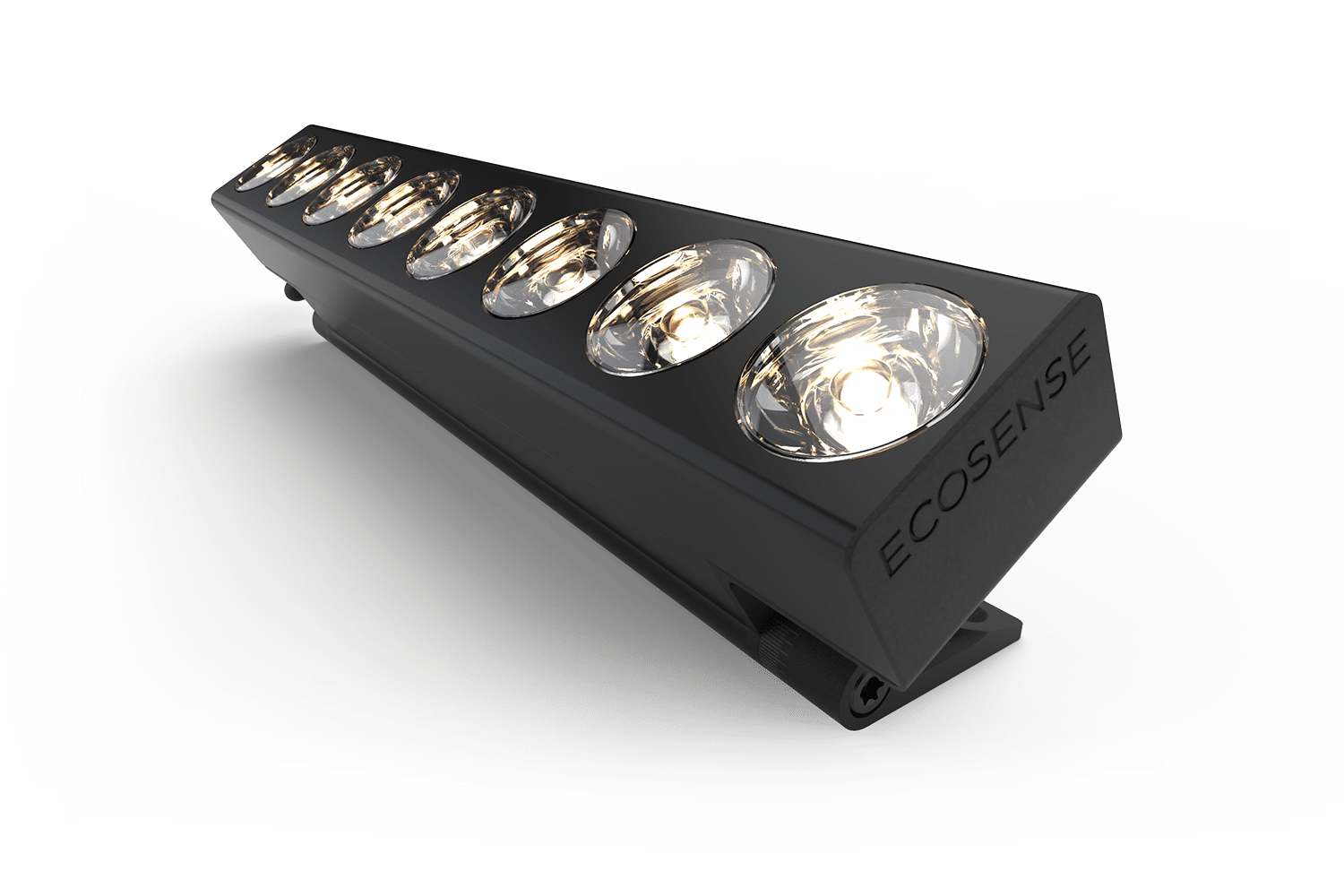

Black and white powder coat finishes come standard.
Custom RAL finishes available across the full color spectrum.

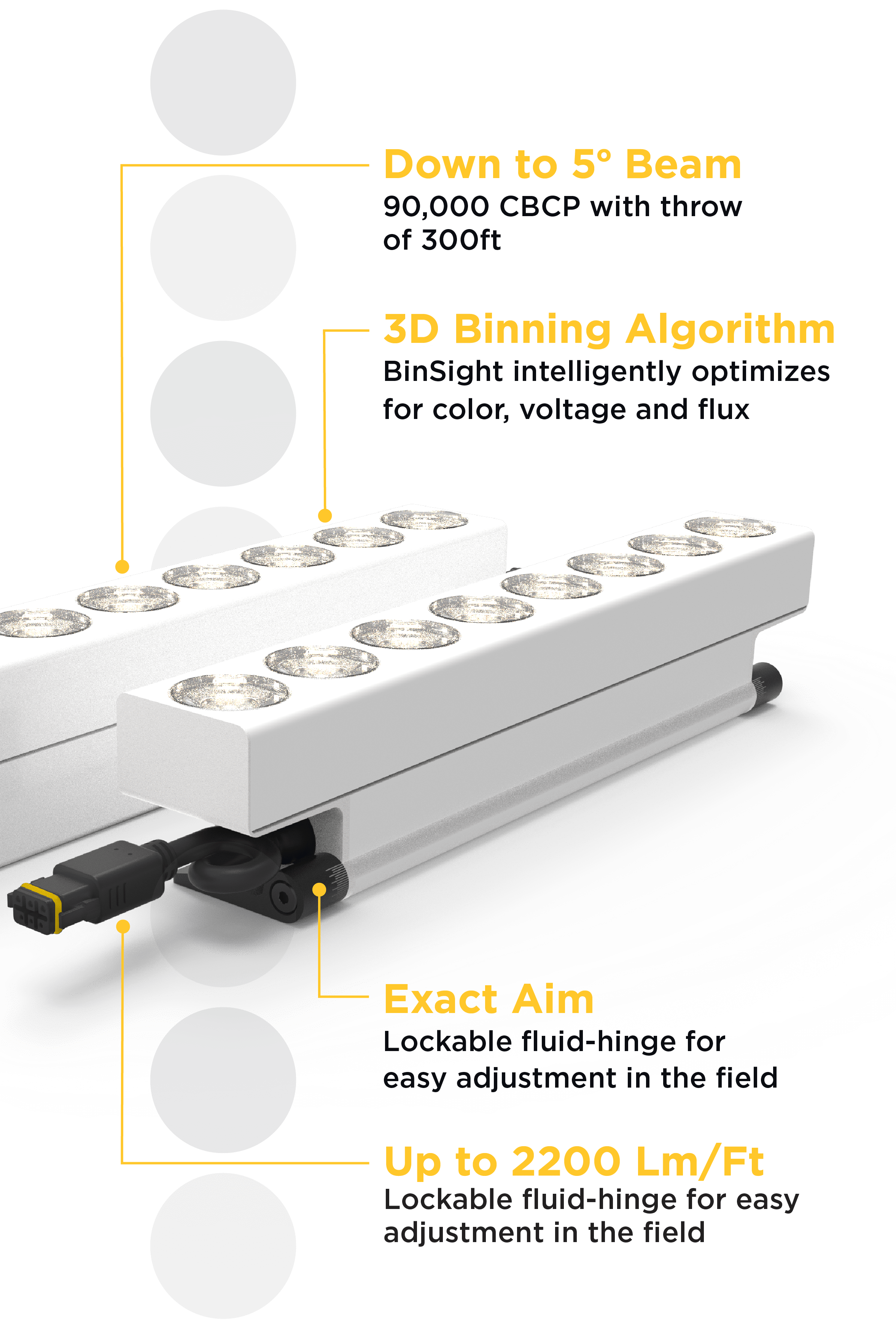

Upgraded Optics

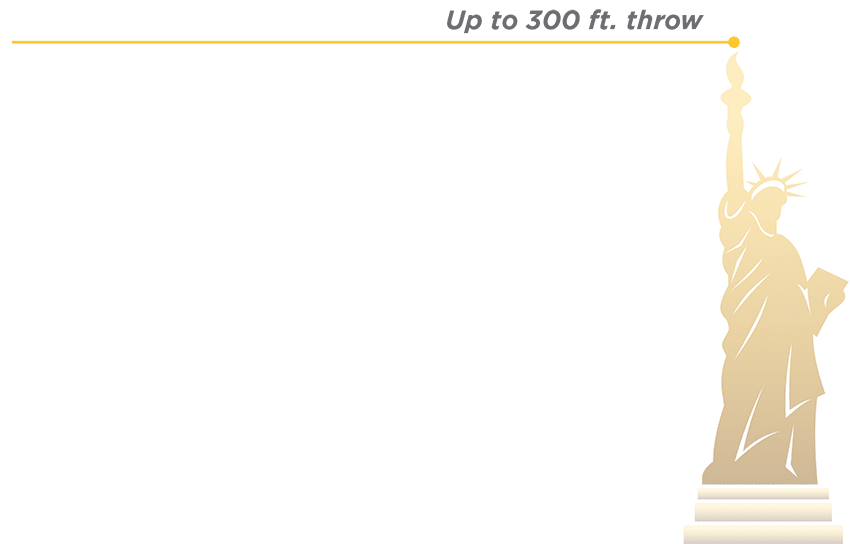

Worlds’s first accent linear 5 throws up to to 300ft. at 90,000 CBCP (that’s the top of the Statue of Liberty!)
Ultra-clean 10×10 provides a striation-free beam.

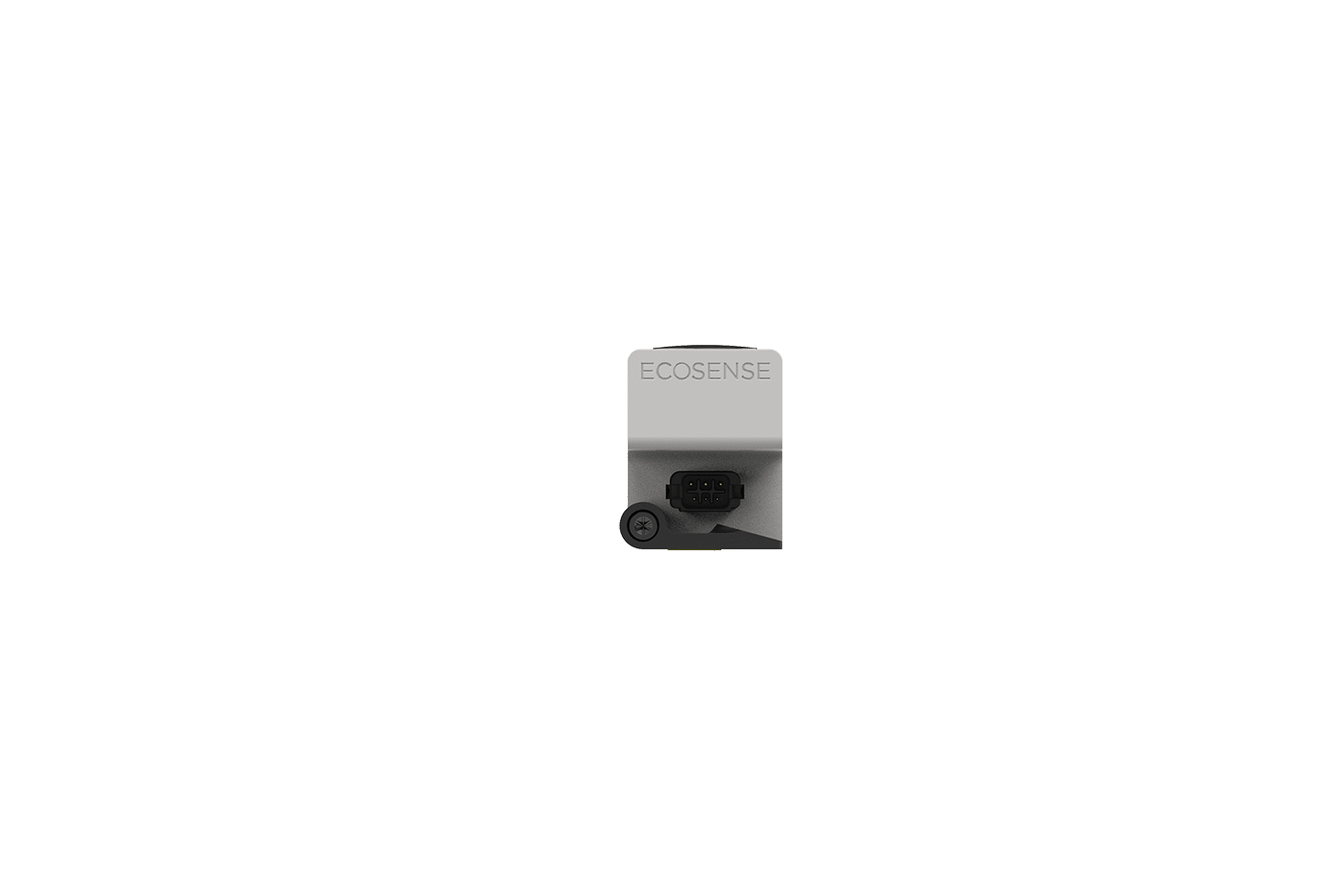

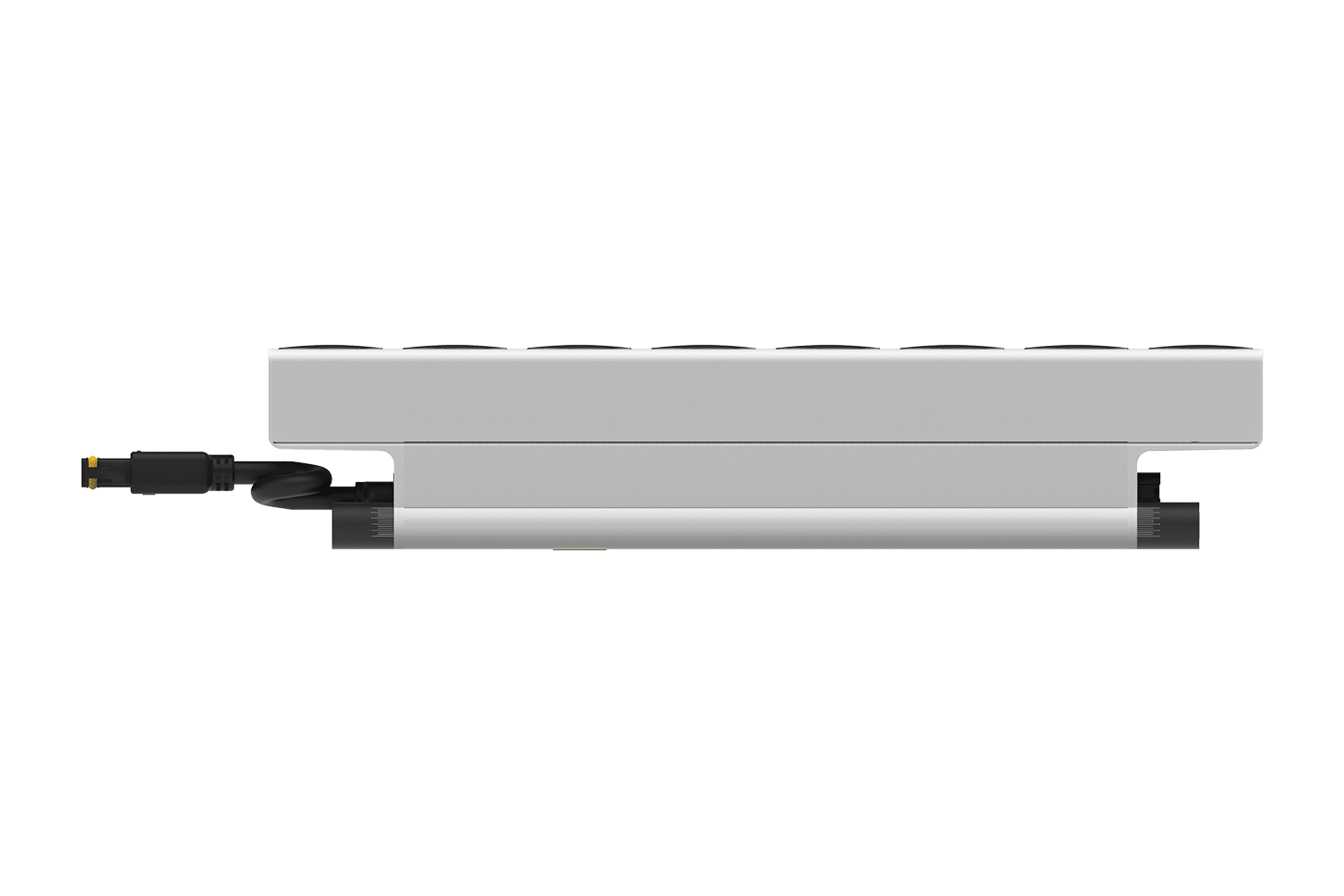

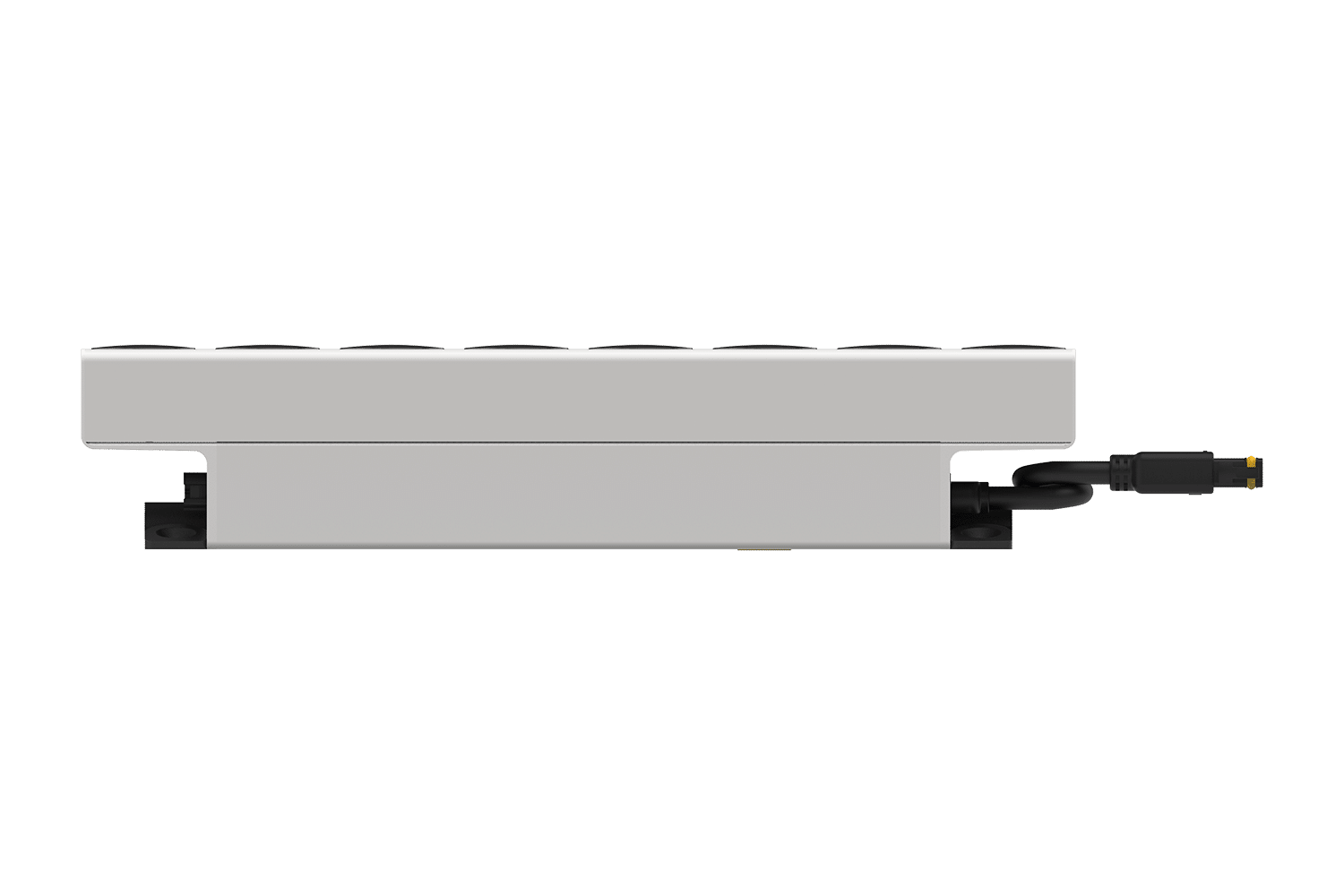

TROV L60 Linear Specifications
- Higher power output (18W/ft driver, providing up to 2200 lm/ft).

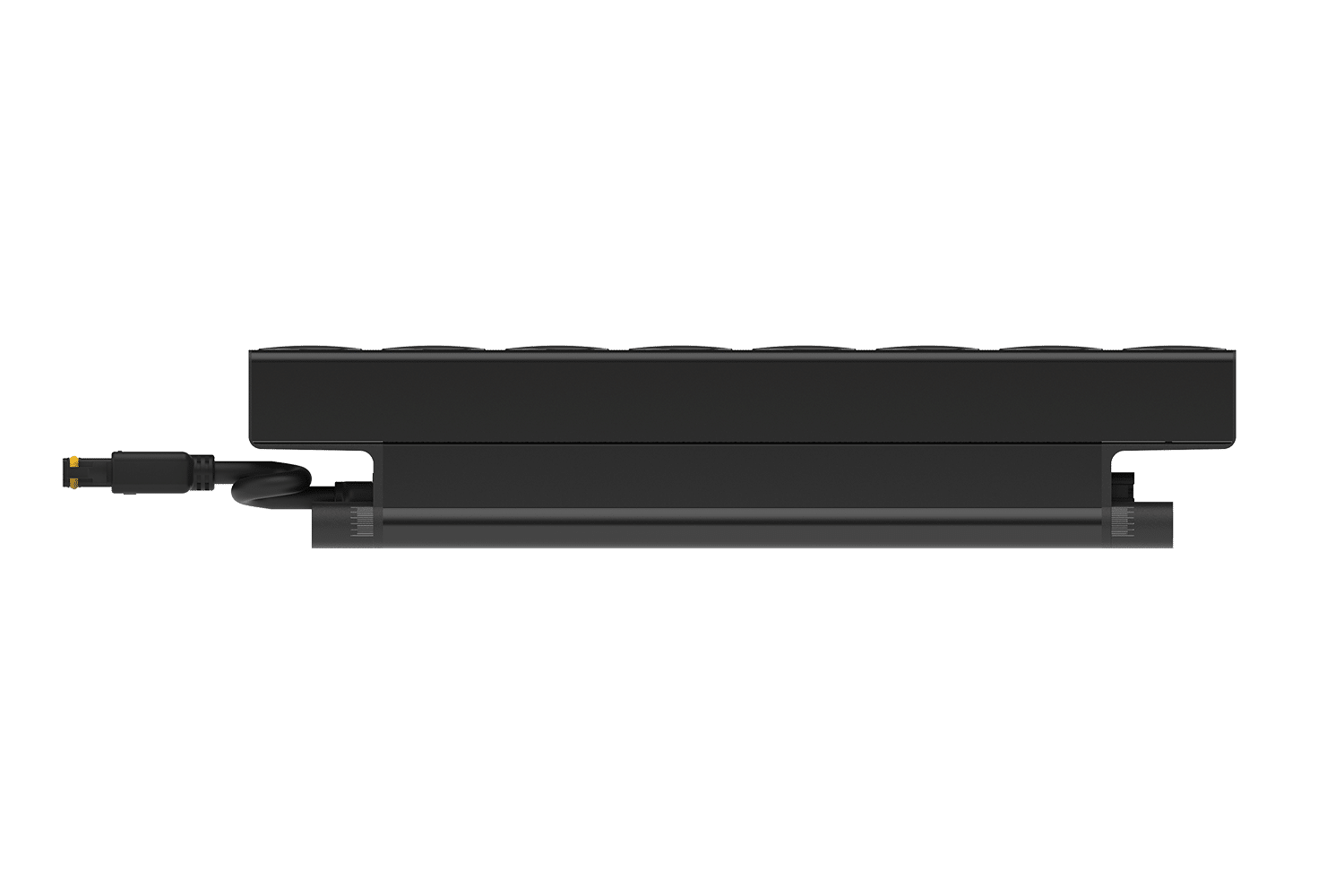

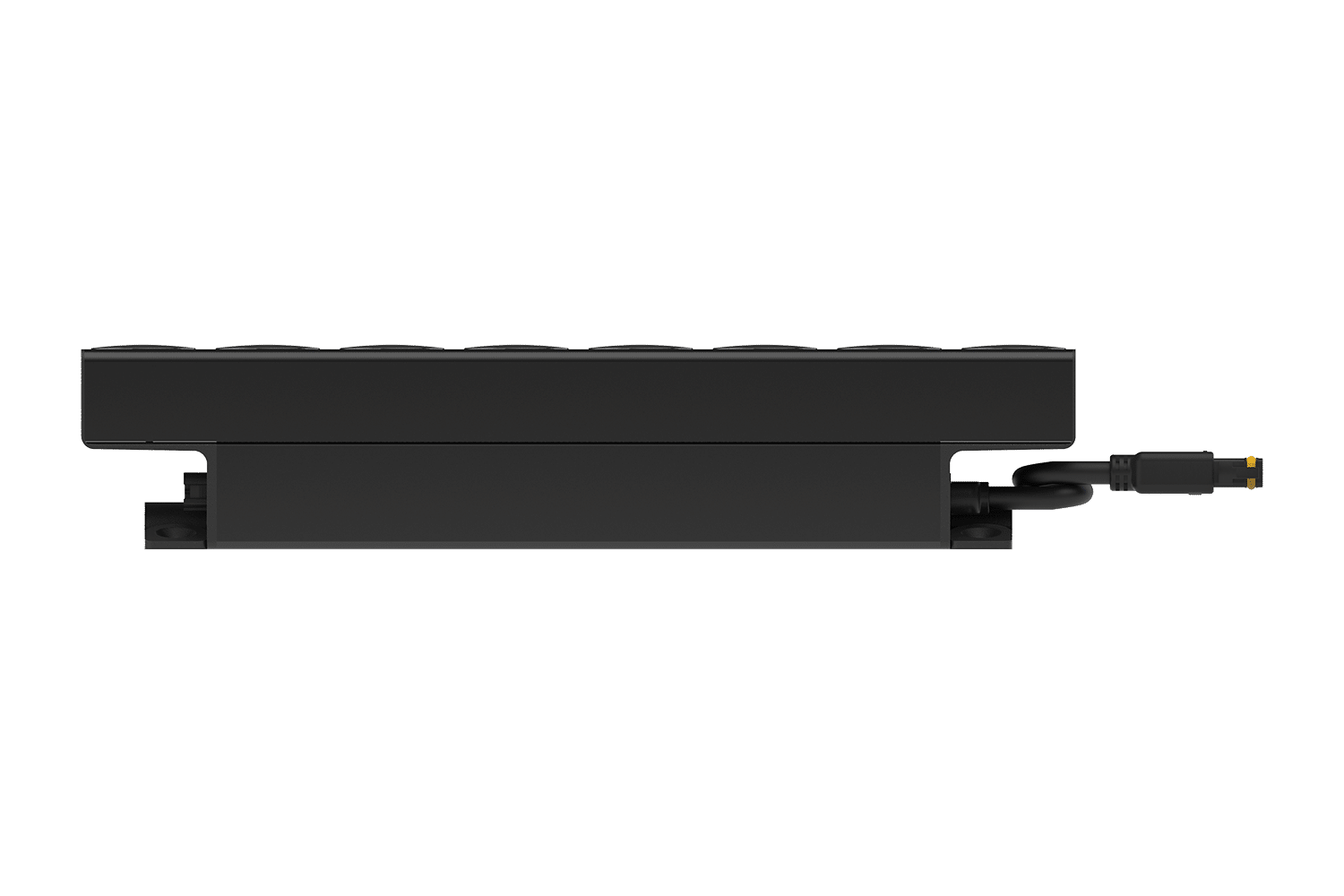

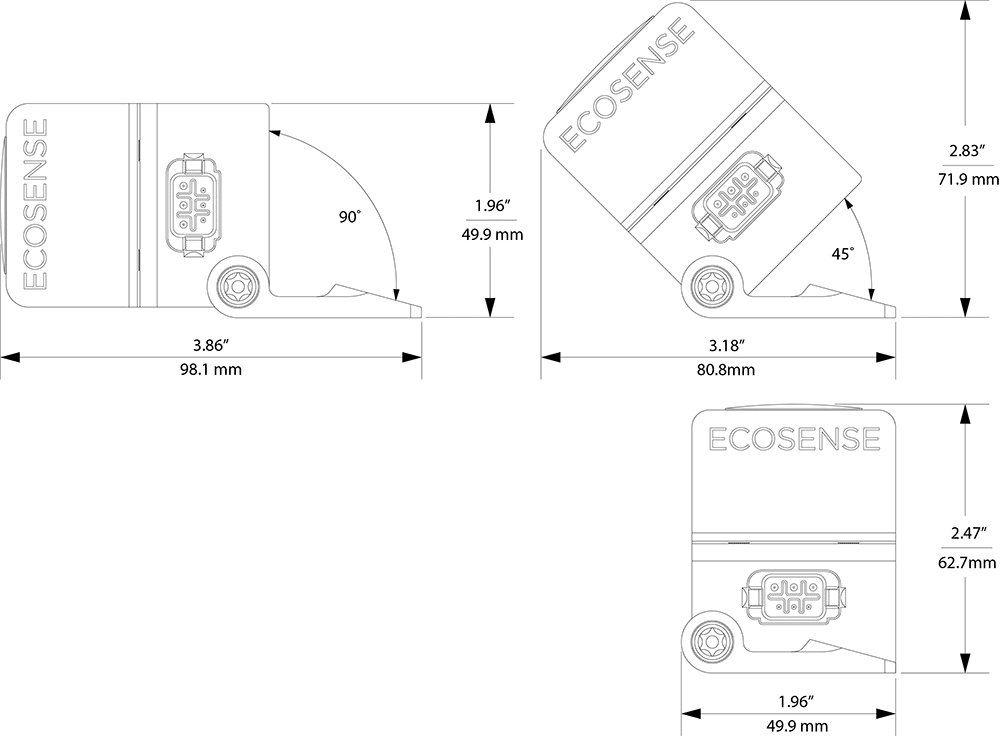

- Compact Design: With a sleek and compact design, our lighting system is 62.7mm(2.47in) tall x 47.3mm(1.86in) wide, making it easy to install in any space.
- Improved optics: 13 optics that include 5×5, 10×10, 10×40, 10×65, 20×20, 20×40, 20×70, 30×30, 30×45, 30×75, 55×55, 55×60, and 55×90, providing a wide range of lighting options.
- Color Temperature and CRI: 7 CCTs, including 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, and 6500K, with a CRI of 80 and 90 options.
- Efficacy: high efficacy, with wide beams ranging from 20° 105-130 lm/W and narrow beams from 5° to 10° 80-90 lm/W.
- CBCP: exceptional CBCP values, including 5°x5° = 90,000 candela = 300ft throw, 10°x10° = 25,000 candela = 160ft throw, and 20°x20° = 17,000 candela = 130ft throw, providing excellent lighting coverage.
- All new and improved accessories.

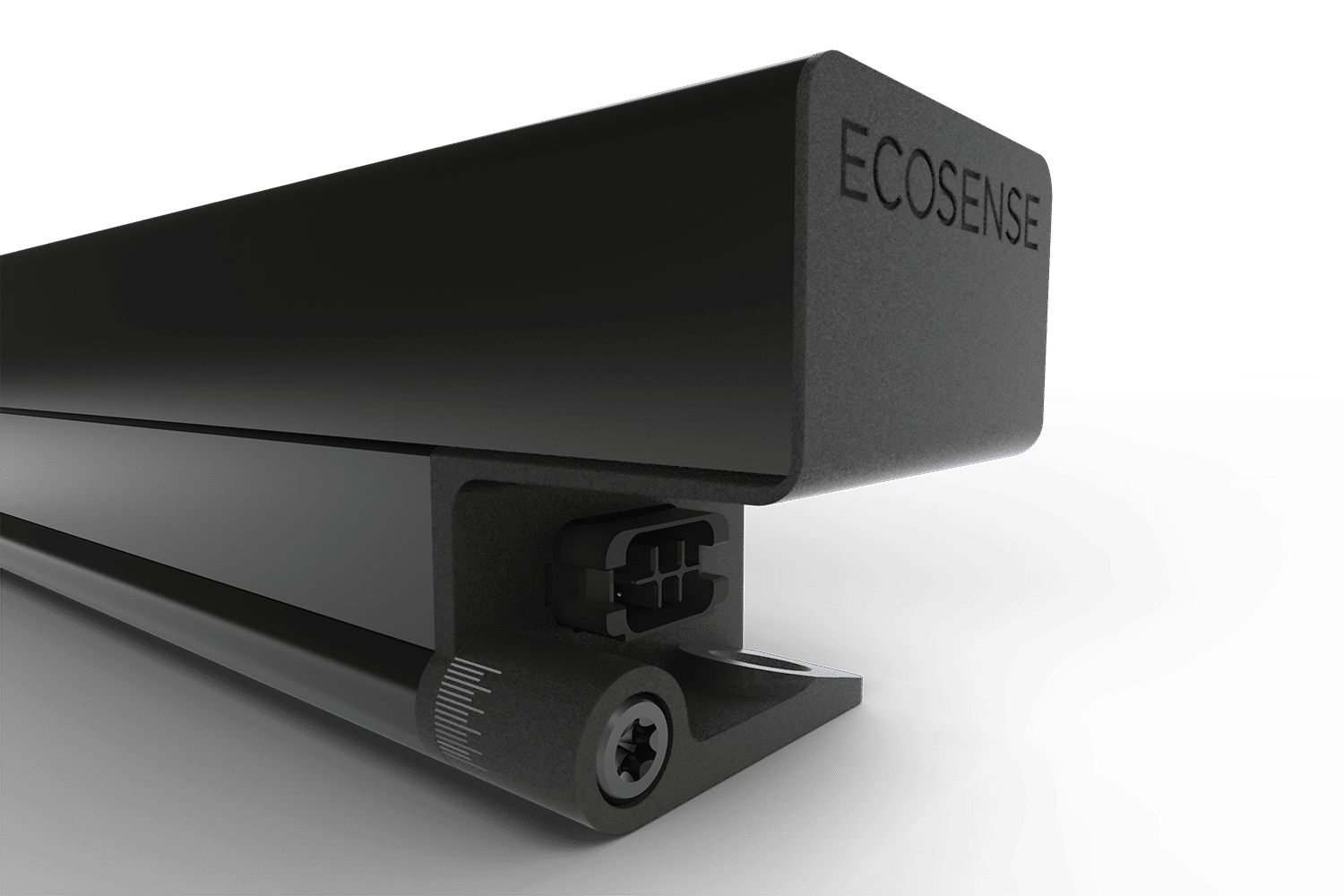

- Fluid articulation with lockable aiming.
- Standard finishes: Black, White, and Custom finishes available.
- Smooth dimming down to 0.01%.
- KAST –– Auto-Sensing Technology Powered by Korrus –– detects and controls the four major commercial dimming protocols:
- ELV (Reverse phase)
- 0-10V (Single & Dual)
- DALI
- DMX/RDM
