Nitrogen 1
Infused with Circadian Blue technology, Nitrogen 1 is tuned for humans. It provides the right blue light at the right time for health and well-being. Maintaining the clean simplicity and balanced proportions of the entire Nitrogen series, this housing offers greater versatility and efficacy.
RAL custom finishes available
Images not available
Nitrogen 1 Specifications
Nitrogen 1 Circadian specifications are different from the standard Nitrogen 1 options. Please see specification sheet below for more details.
- Optics options:
- Flood
- Narrow Flood
- Wall Graze
- Wall Wash
- Aisle Lighter
- Tunablility*:
-
- Warm Dim
- Tunable White
- RGBW
*(Some continuous run permutations of this model that require multiple drivers per luminaire section, may not be compatible with tunable options. Contact factory for more info.)
-
- Powered Suspension System (PSS)
- Standard 0-10V dimming to 1%
- Wattage and lumen package options @ 4000K:
- 4W / 496Lm/LF
- 6W / 695Lm/LF
- 8W / 920Lm/LF
- 10W / 1107Lm/LF
- 12W / 1335Lm/LF
- Efficacy up to 124Lm/W
- CCT range: 2700K, 3000K, 3500K, 4000K and 5000K
- Remote Driver
- Multiple mounting options:
- Cable Suspended
- Cable Suspended Rotational
- Rotational Arm Mount
- Surface Mount
- Light Distribution:
- Direct, Indirect, 360° Rotational

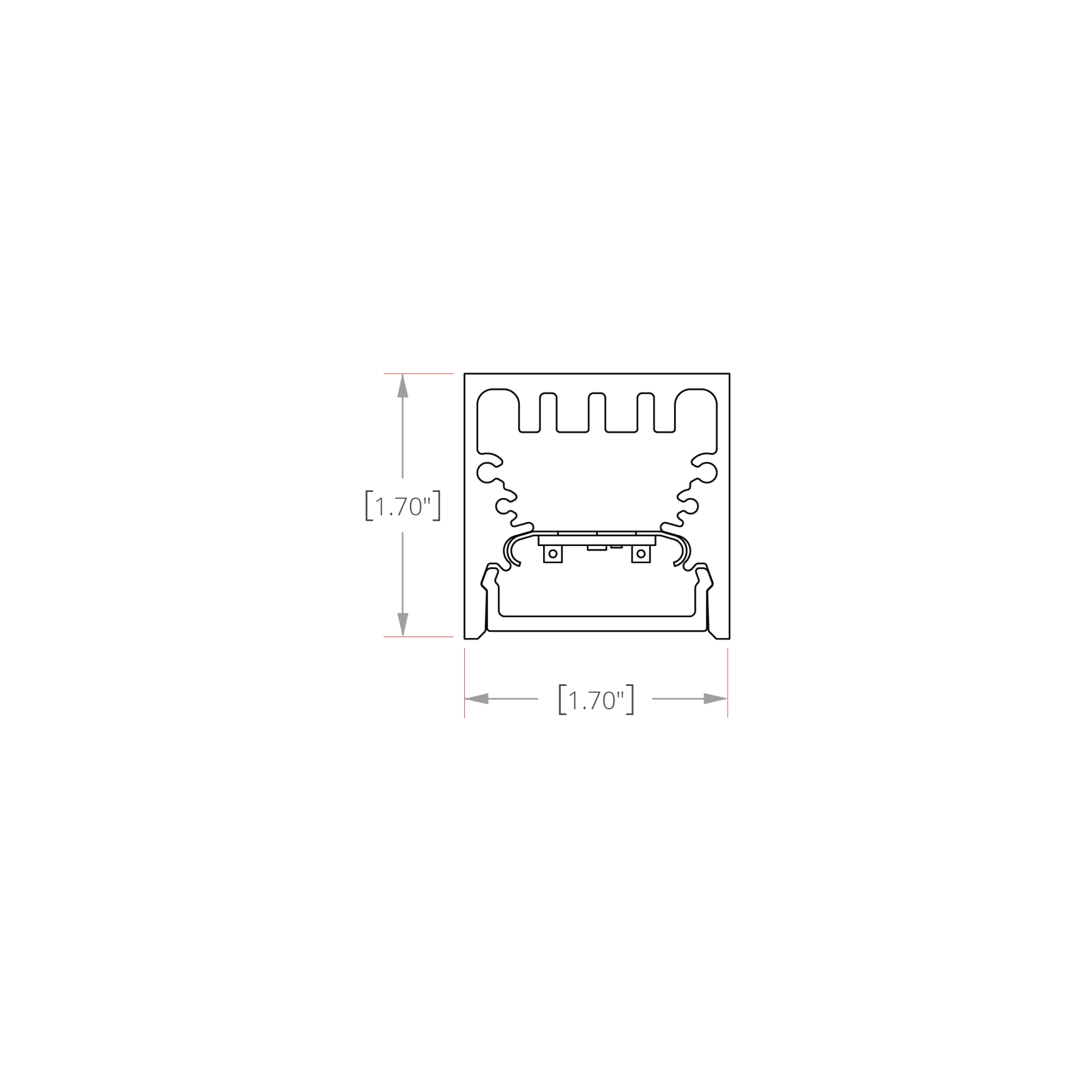

- Dimensions: 1-11/16″ Square Profile
Nitrogen 1 Circadian Specifications
-
- Optics options:
- Flood
- Tunability:
- Controls DALI DT8
- DALI DT8 digital dimming down to 1%
- Wattage and lumen packaging options @ 2700K and 4000K
- See Circadian spec sheet for specific lumen wattage.
- Efficacy up to 124 lm/w
- CCT range: 2700K-4000K
- Light Distribution:
- Direct
- Optics options:
Nitrogen 1 Downloads
Specifications
Installation Guides
LM79
IES
Dimmer Compatibility
Compatibility
Energy Label (EU) 2019/2015
CAD Drawings
Revit
3D PDF Files
Product Catalogs & Word Bank
Tradeshow Brochures
OEM Partnerships
Logos
RISE Resources
Lumium Resources
Lumium Resources
Trouble Shooting Guide
Marketing Materials
TROV Resources
TROV Slim Resources
TROV Flex Resources
Korrus Grid Resources
OIO Plane Resources
TEMPO Resources
Specifications
Installation Guides
LM79
IES
Dimmer Compatibility
Compatibility
Energy Label (EU) 2019/2015
CAD Drawings
Revit
3D PDF Files
Product Catalogs & Word Bank
Tradeshow Brochures
OEM Partnerships
Logos
RISE Resources
Lumium Resources
Soraa Resources
Trouble Shooting Guide
Marketing Materials
TROV Resources
TROV Slim Resources
TROV Flex Resources
Korrus Grid Resources
OIO Plane Resources
TEMPO Resources
Mounting Options

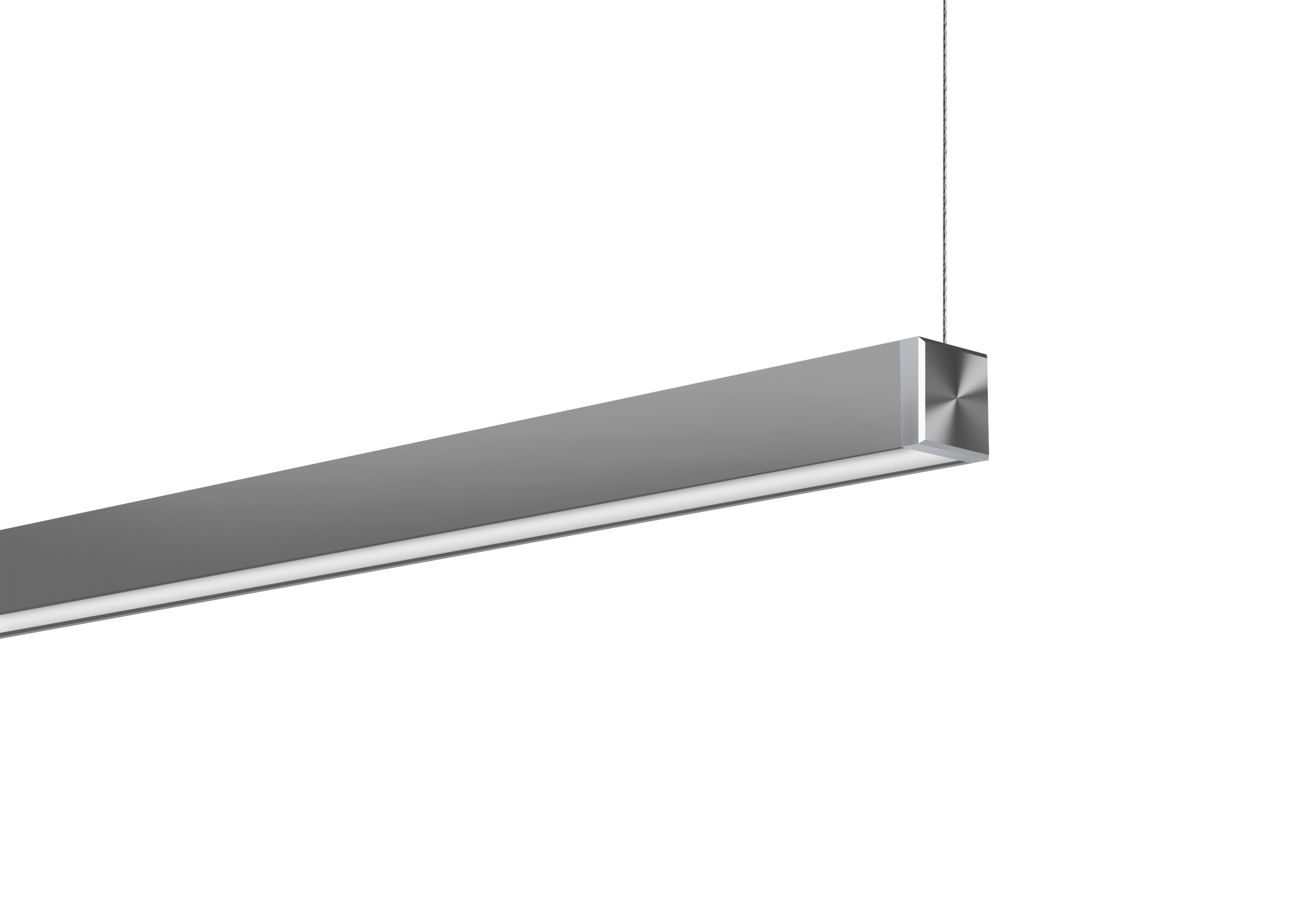

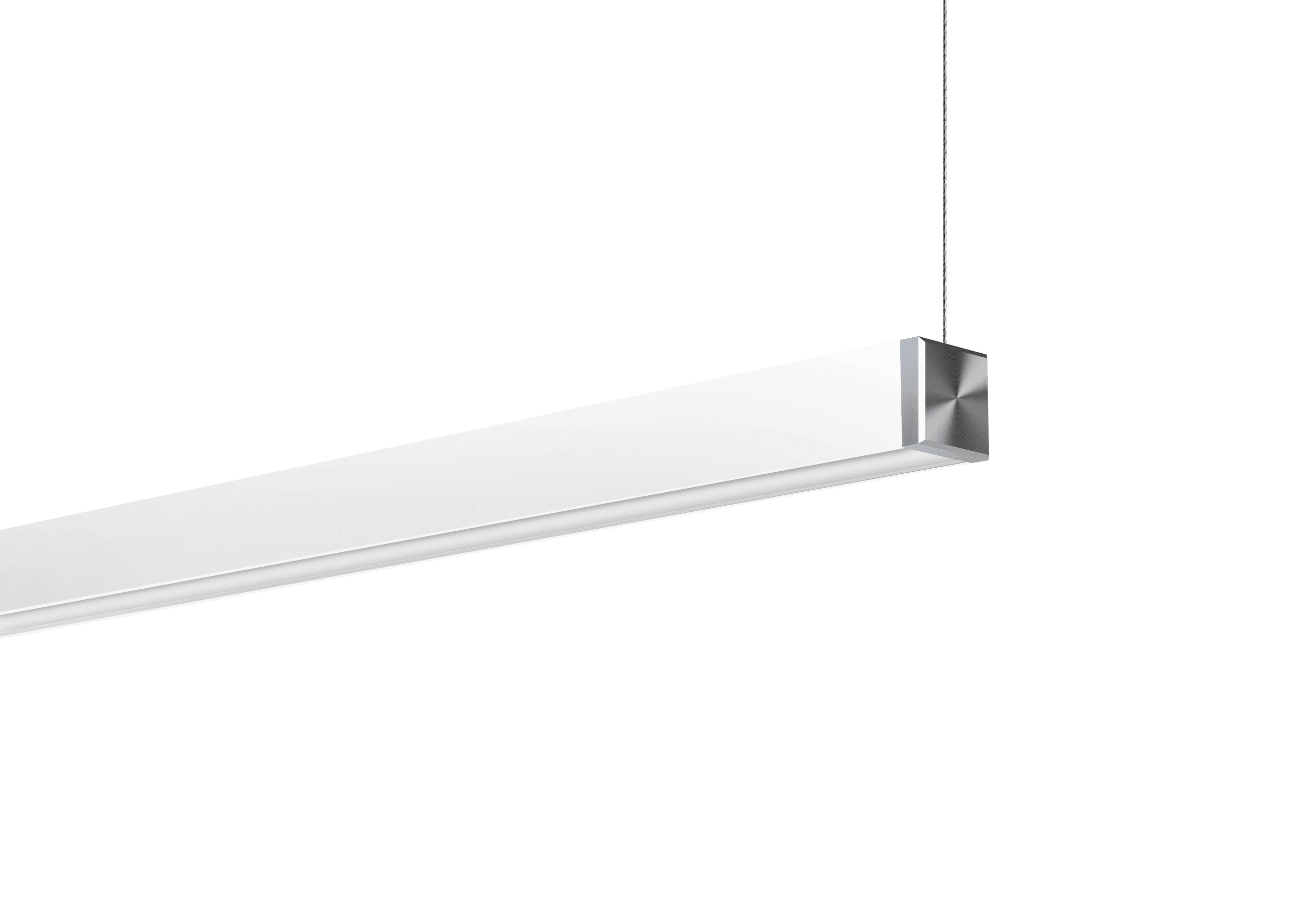

Cable Suspended

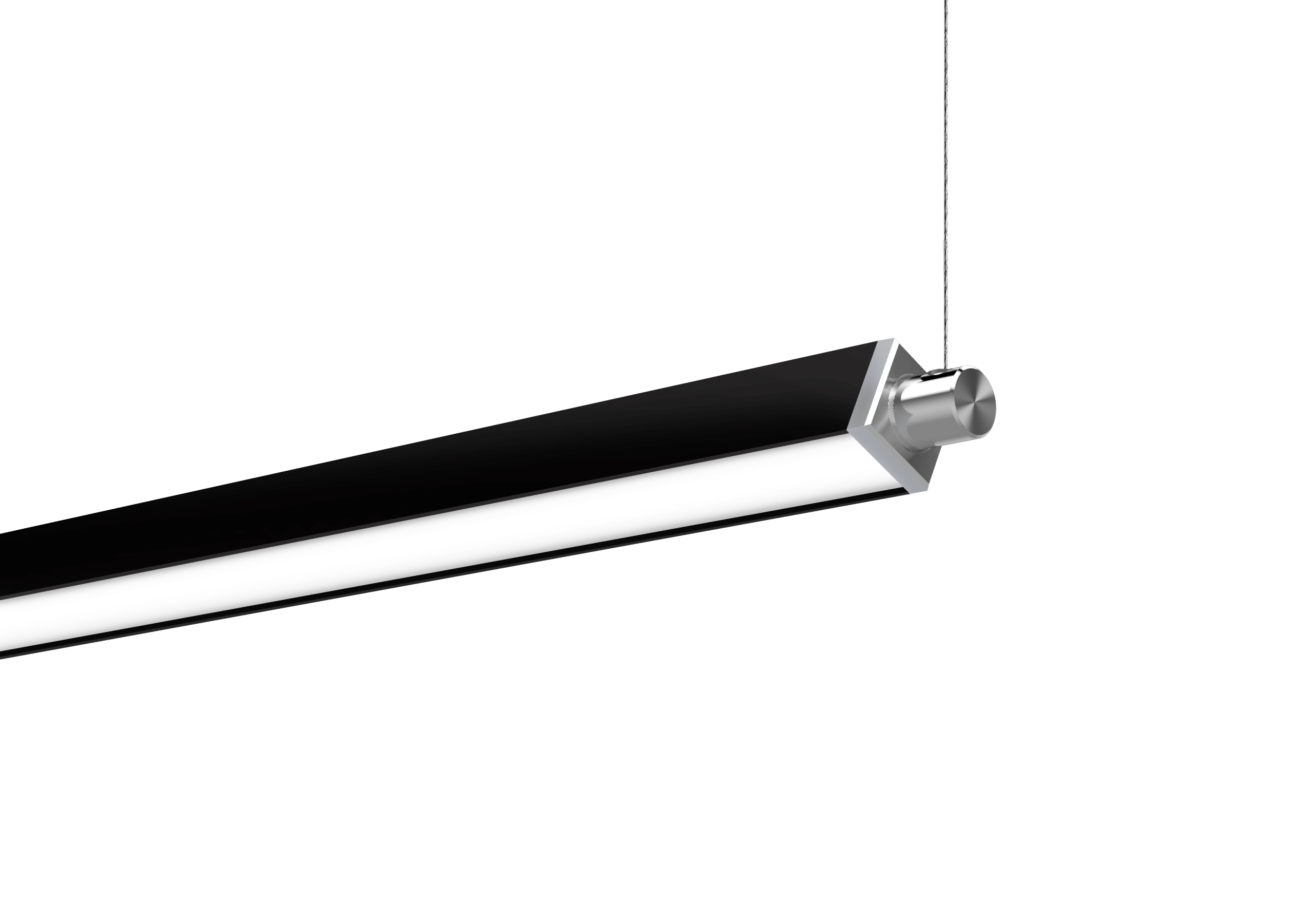

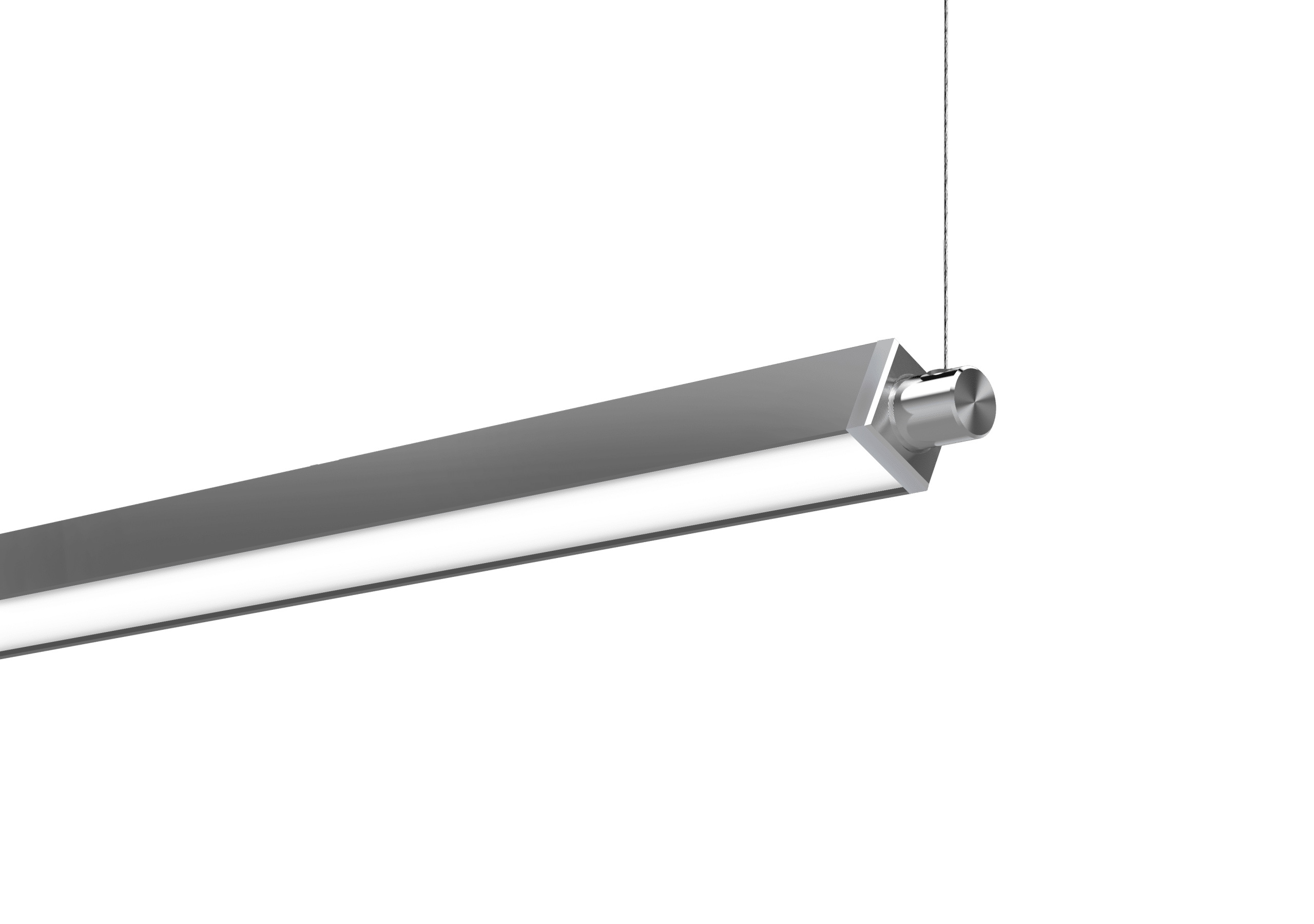

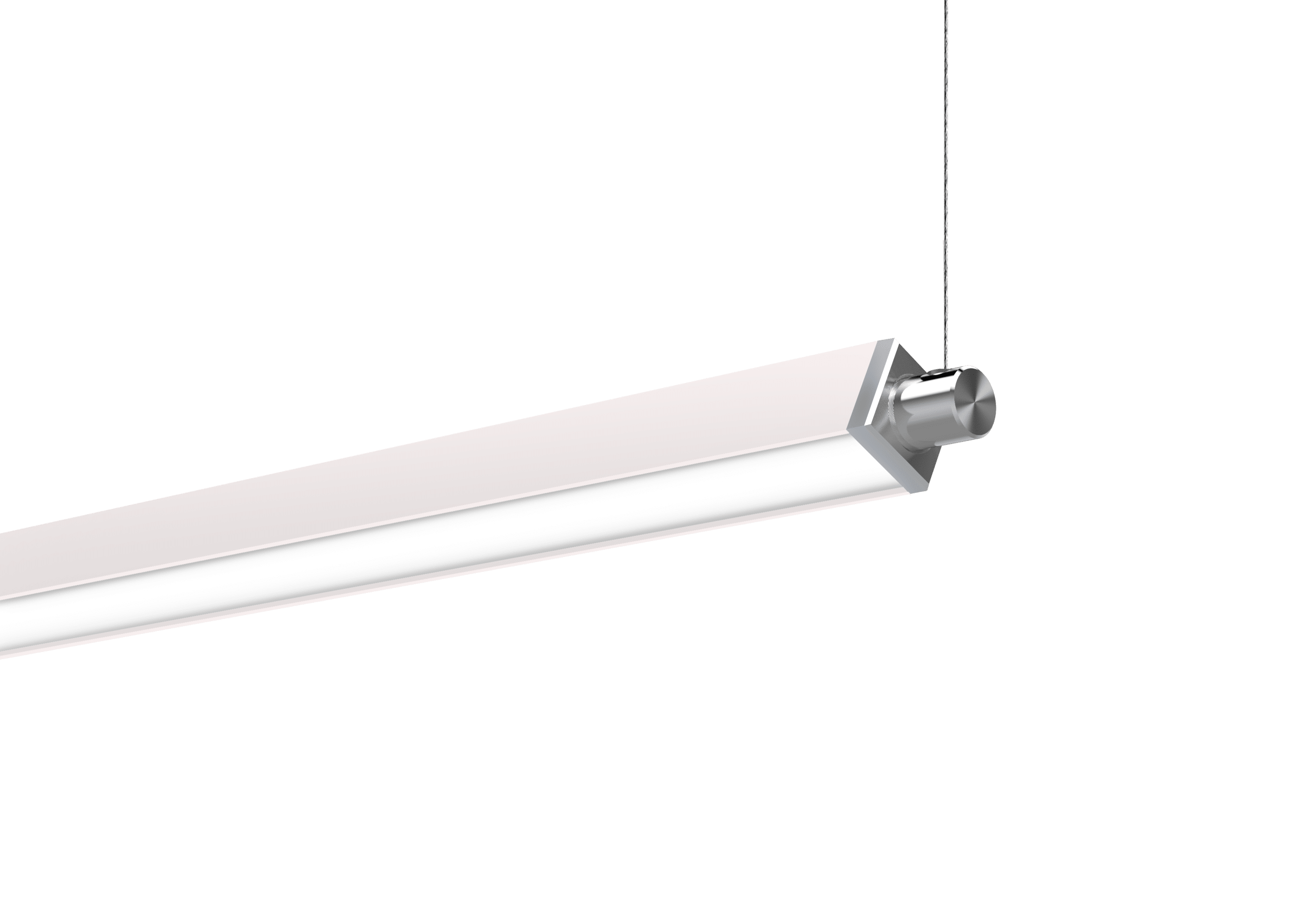

Cable Suspended Rotational

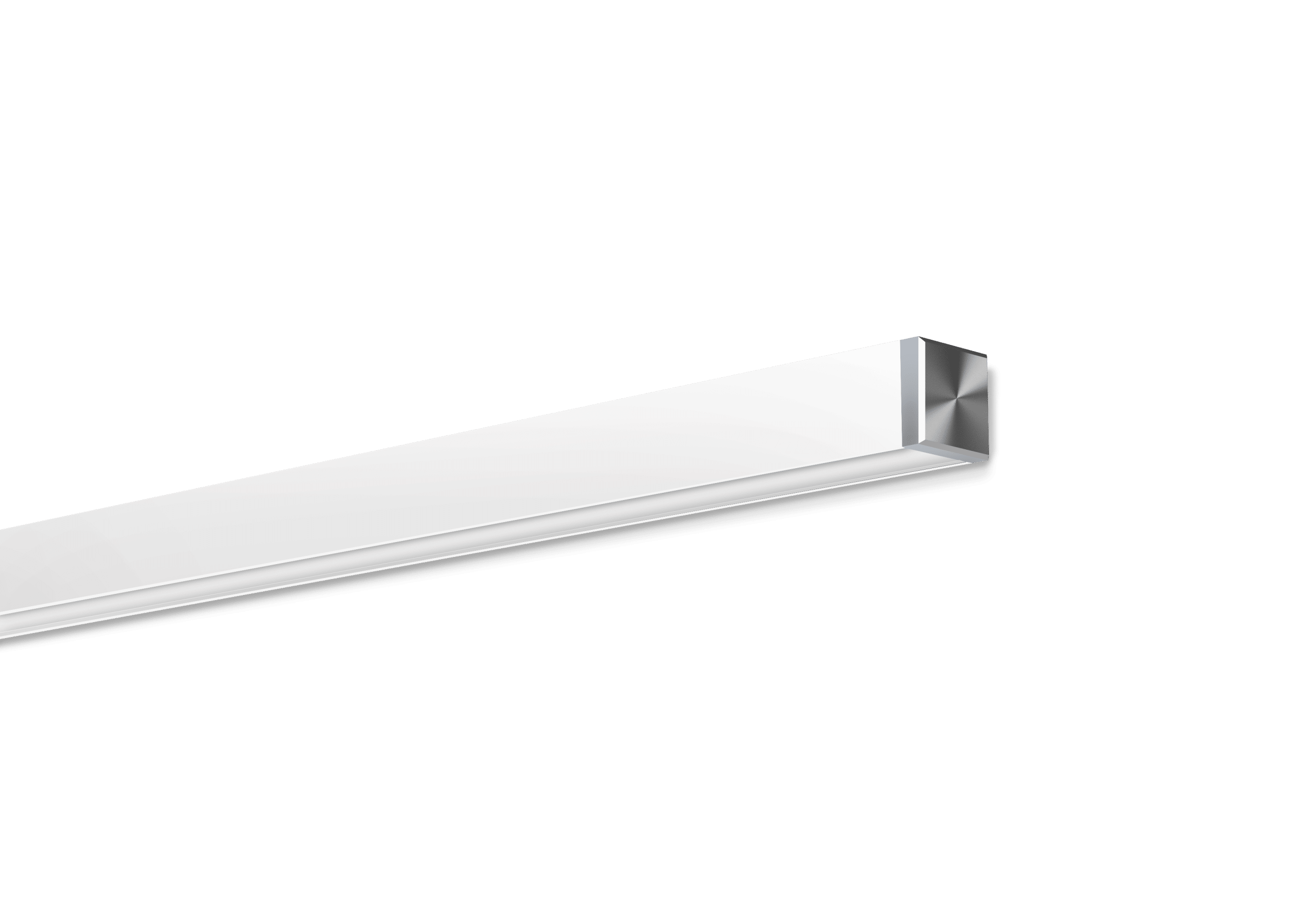

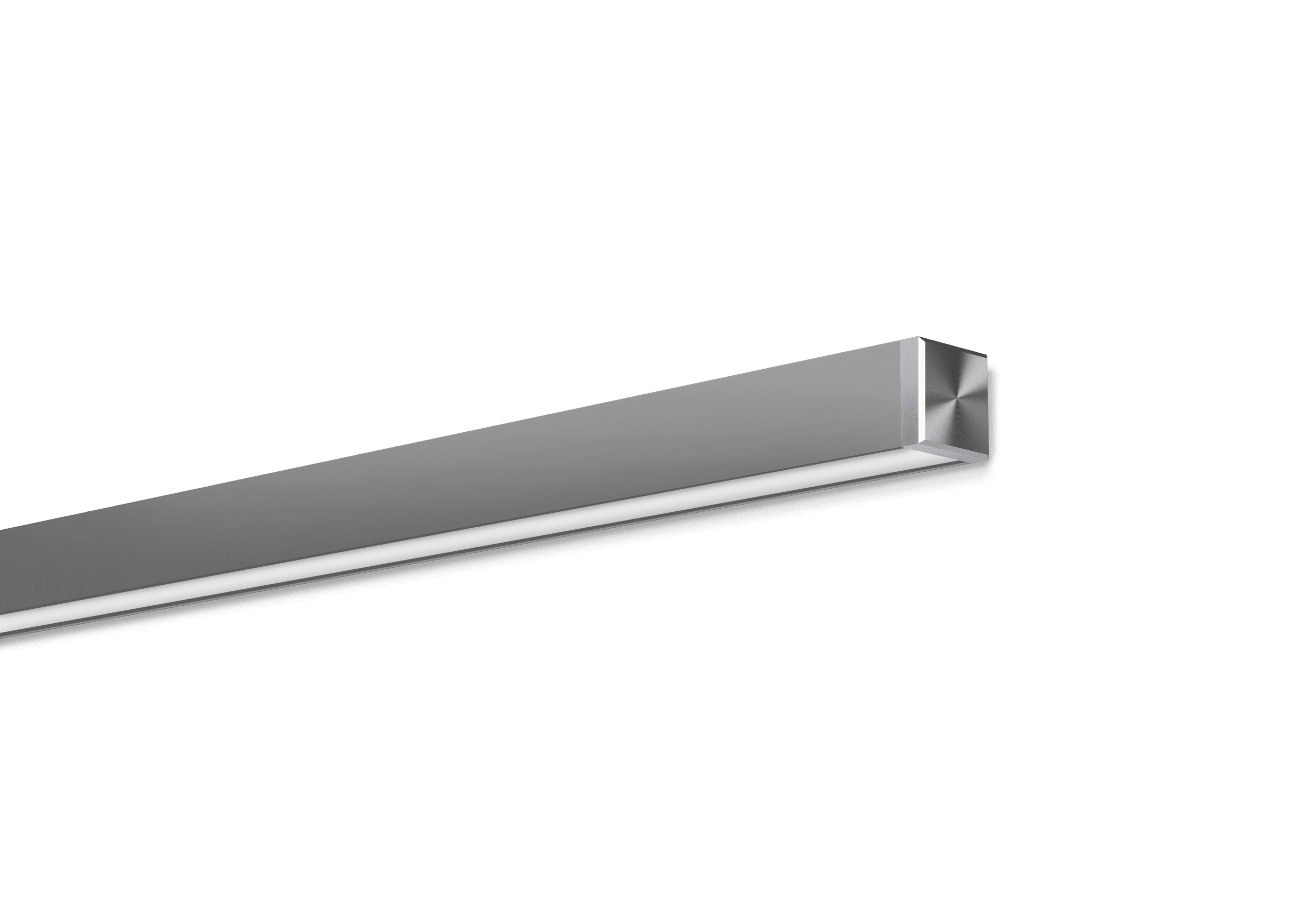

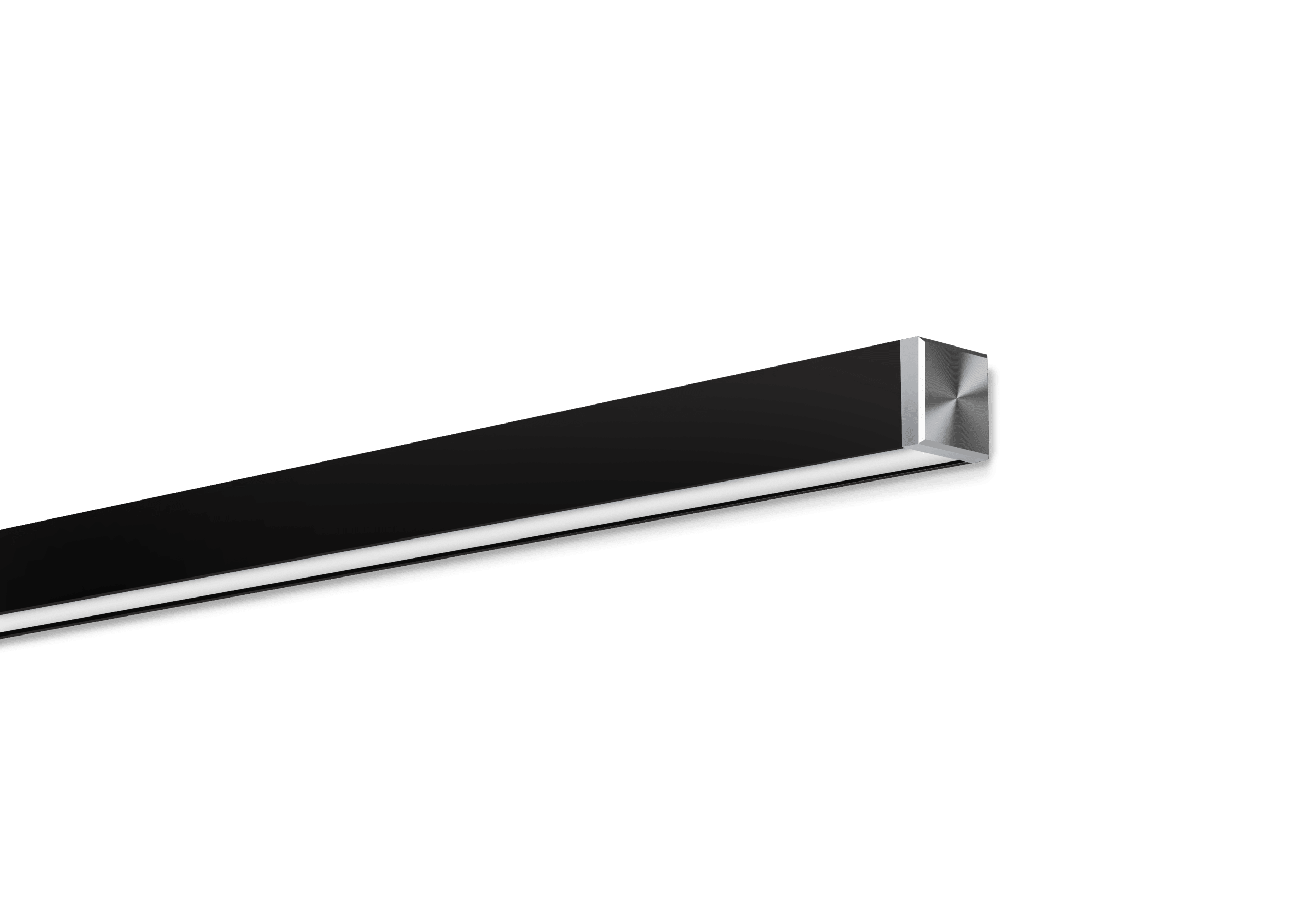

Surface Mount

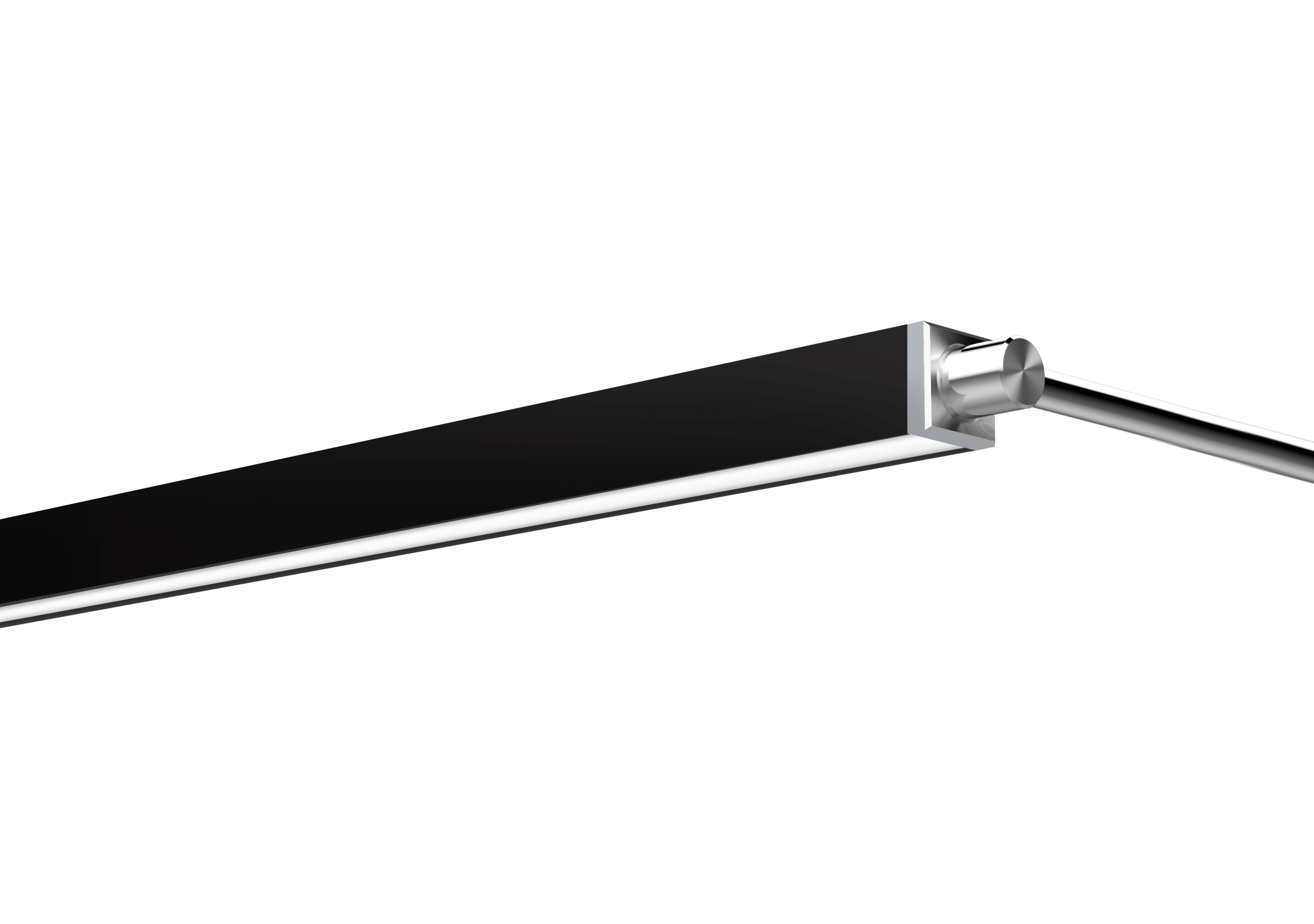

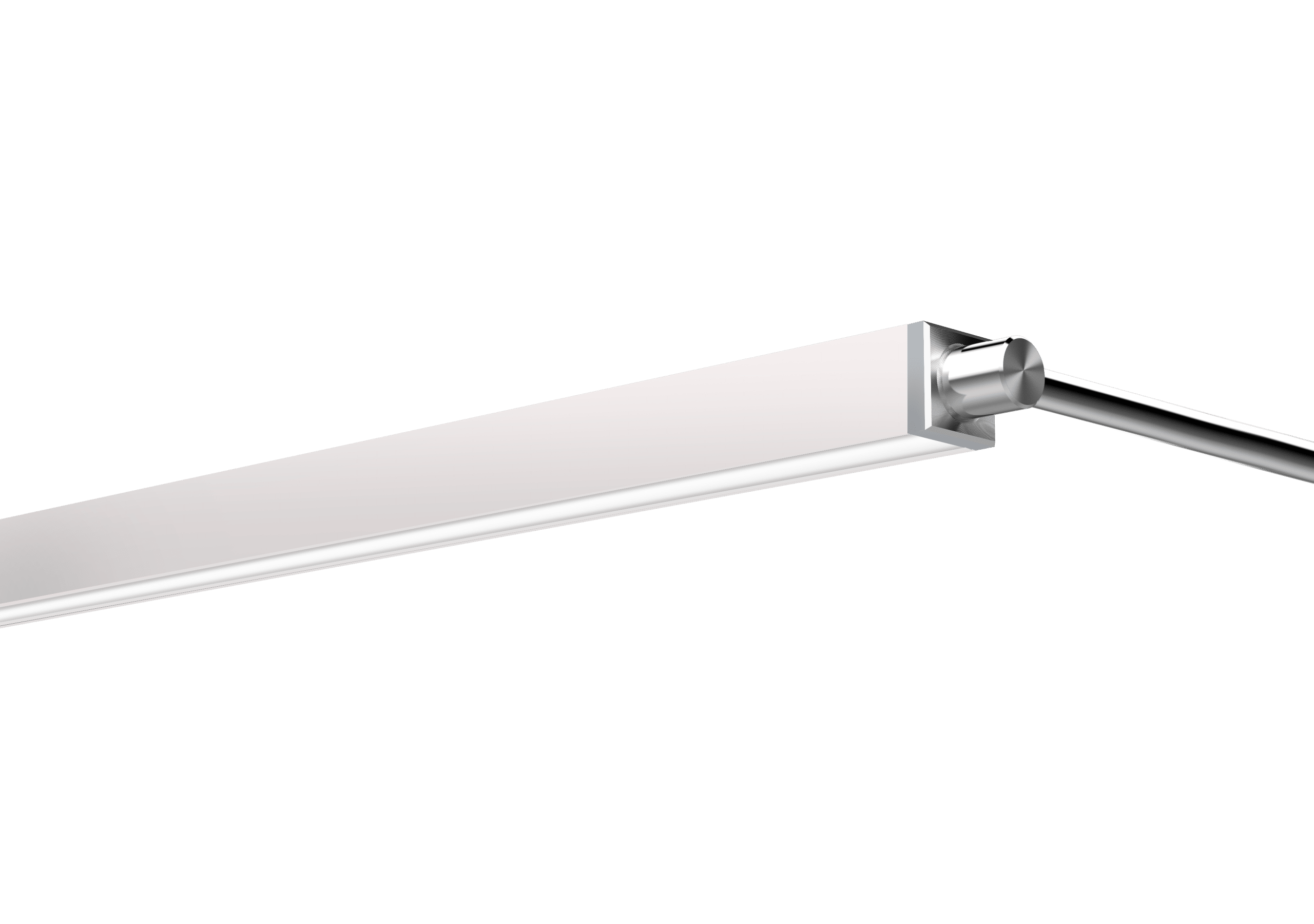

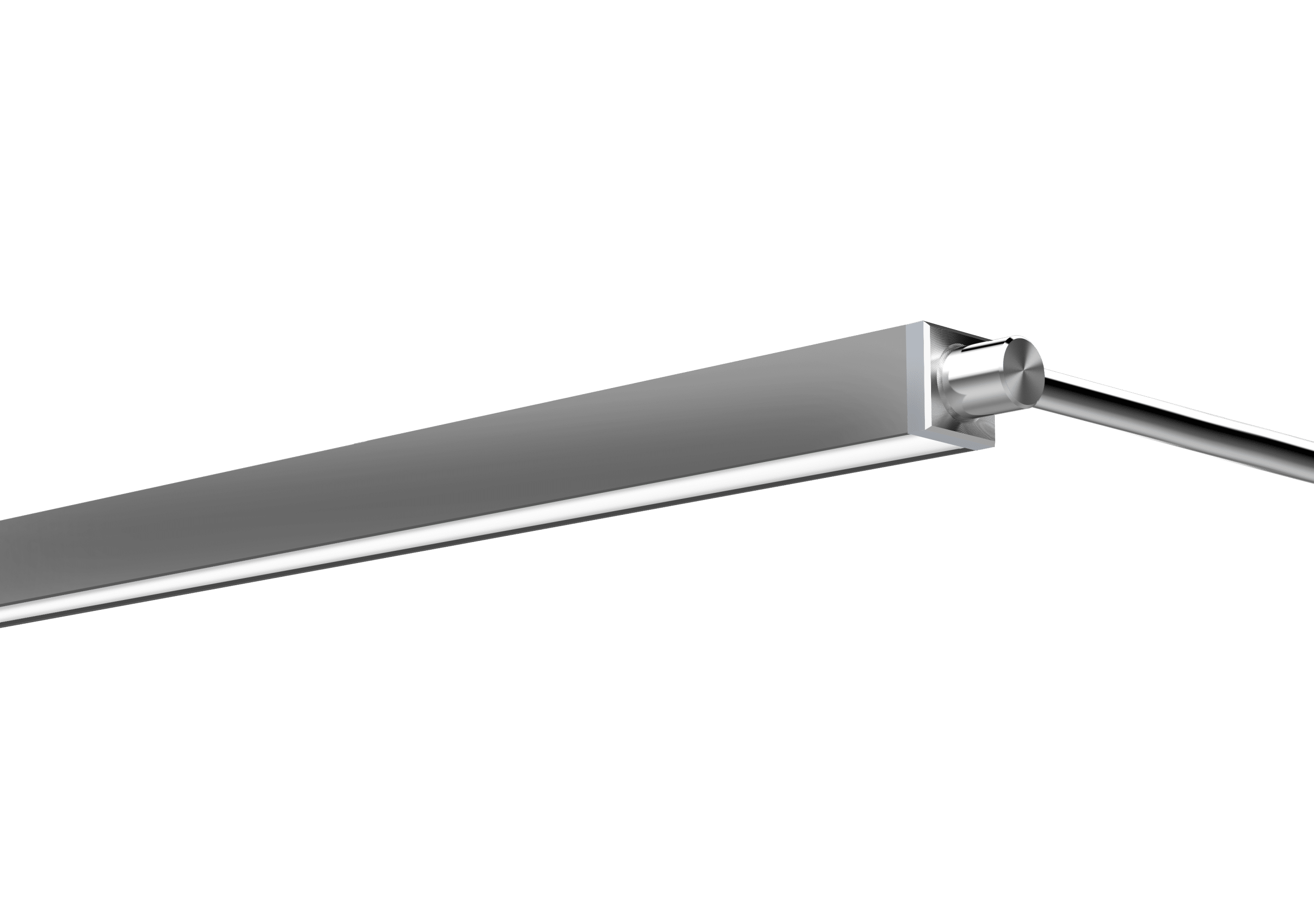

Rotational Arm Mount
Canopy Options

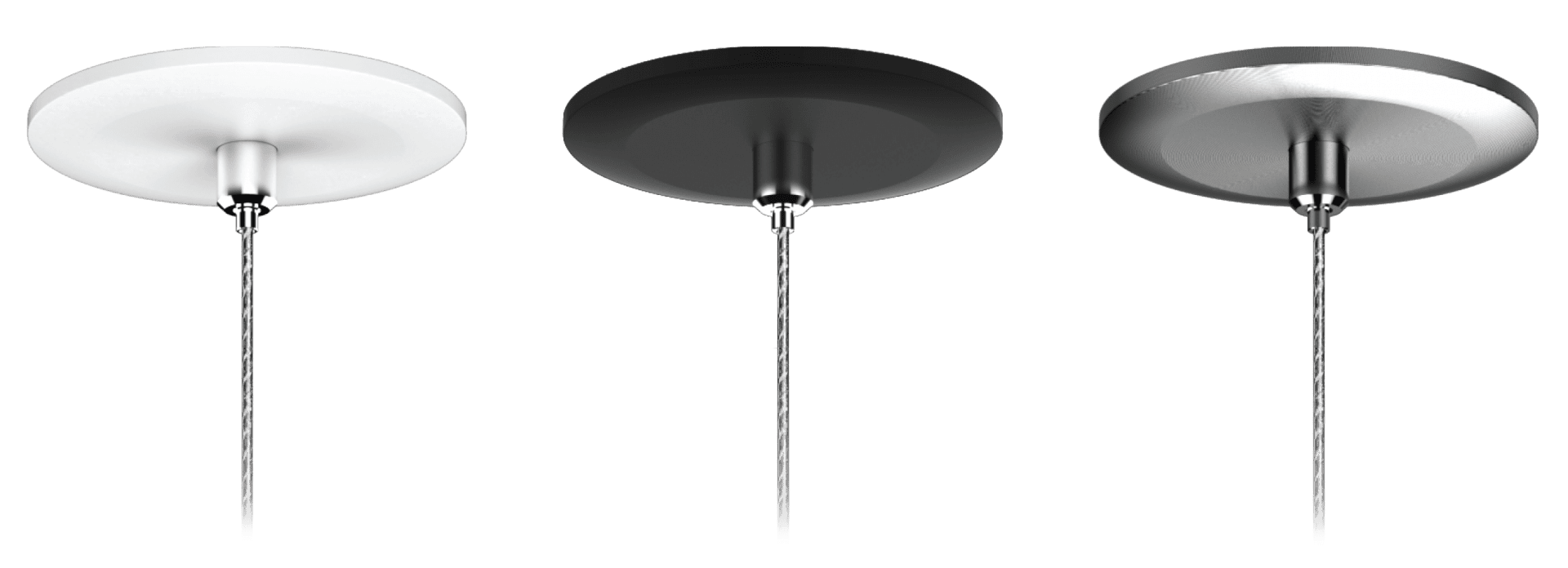

Standard (44 Canopy Option)

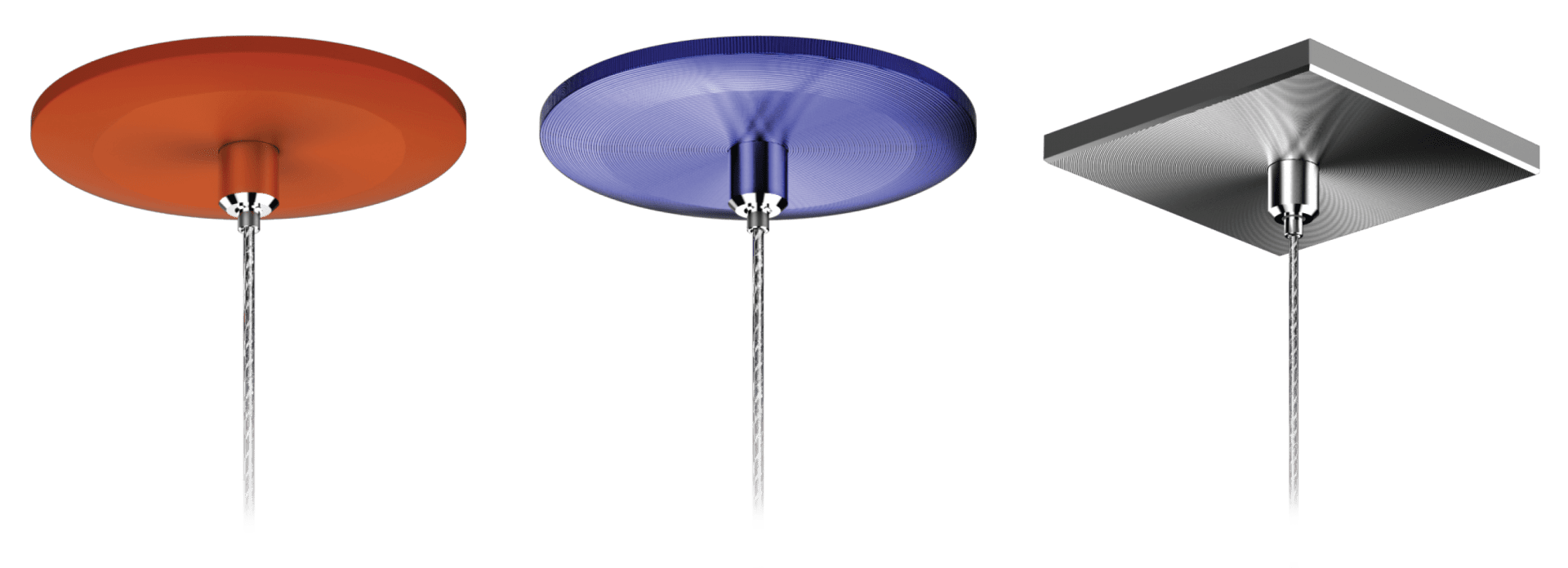

Custom

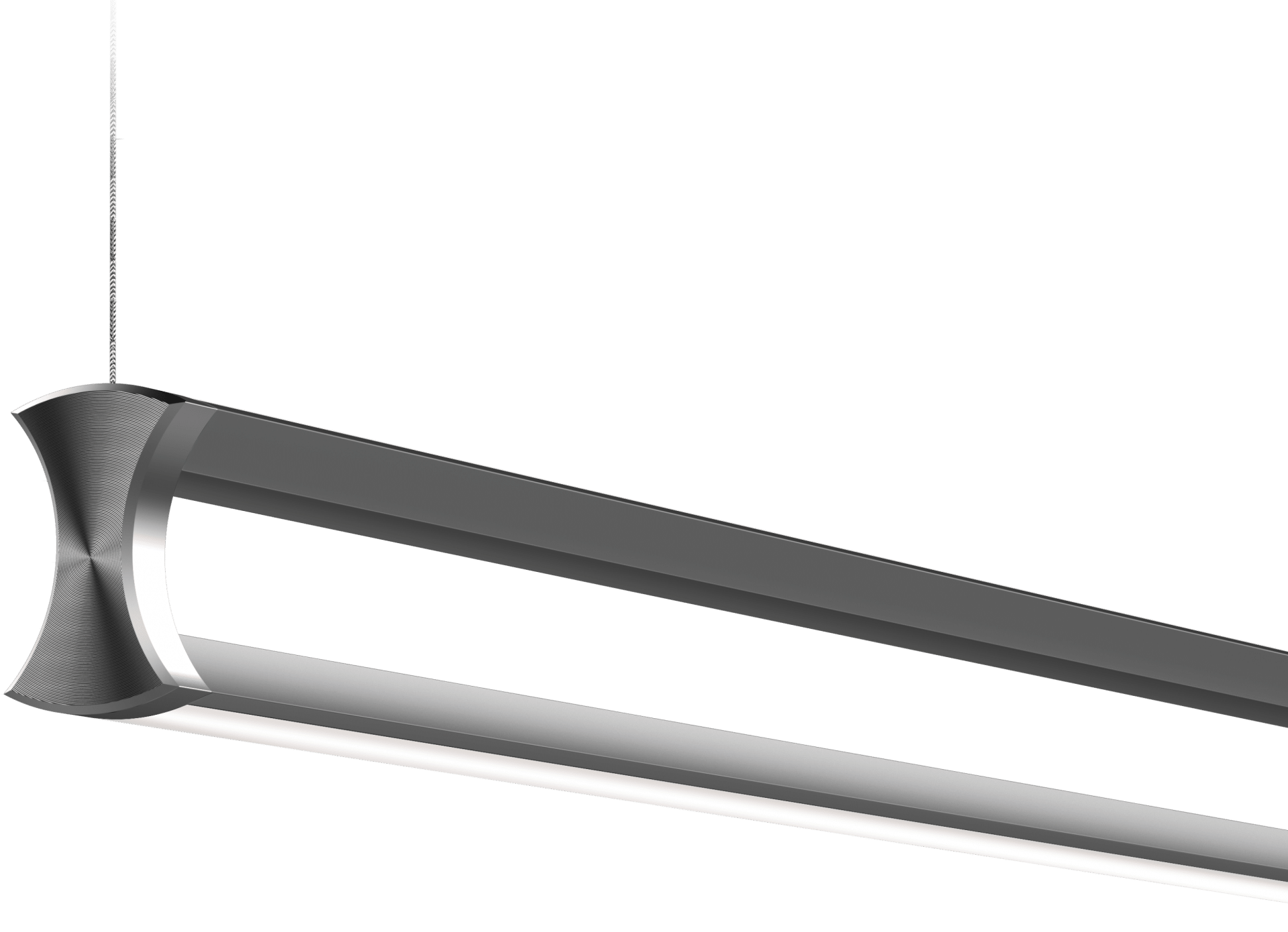

Powered Suspension System
Lumium’s Powered Suspension System (PSS) eliminates traditional thick power cables, creating a clean and uncluttered aesthetic that compliments smaller sized luminaire profiles.
Low Voltage class 2 power is carried from remote drivers through a thin 1/8” dual-conductor coaxial suspension cable. The minimal design opens up a new element of creative freedom.
Zero Canopy Options
Zero Canopy is Lumium’s exclusive suspension mounting method to eliminate all visual distractions on the ceiling plane. When used with non-powered aircraft suspension cable, or with our Powered Suspension System (PSS) and remote driver, Lumium’s Zero Canopy option eliminates the need for a thick canopy cover by ingeniously hiding the height-adjustment gripper and electrical connections behind a thin 2-1/4” magnetized access panel. Paint the panel to match the ceiling to create a simple, elegant luminaire suspension system with no visible hardware. Attaches to a standard 4” j-box. Available for hard top mud-in ceilings up to 3/4” thick, as well as suspended ceilings from 1/4” – 1-1/2” thick.
ACT (2ACT)
MUD-IN (2MIC)
